PHL Graphic Industry Stalwarts Admire Fuji Xerox Digital Machines

Updated: March 12, 12:39 p.m. Correction in the title, replaced “new” with “digital”, including in text body.


Twitter: @edd1819, Instagram: @bluestar0910, Facebook: SDN — Science, Digital & Current News

(SDN) — STALWARTS of the Philippines graphic industry have welcomed the digital printing machines that Fuji Xerox introduced in the country.

Fuji Xerox Philippines unveiled in an Open House recently its Versant 180 Press, Iridesse Production Press, and DC5588.

Dewey Gan, Graphic Communications head at Fuji Xerox, led the unveiling of the machines as stakeholders, including the Graphics Industry’s leaders, observed and admired the state-of-the-art printing machines.

PHL, graphic industry, new digital printing machines, Versant 180, Iridesse, DC558
DIGITAL PRINTING. Some of the guests at the Fuji Xerox Philippines Open House in the company’s Showroom on February 19, 2020.

The company’s Marketing Communications Team helped entertained the guests and answered their questions to satisfy their curiosity. Curiosity that hopefully would lead to business deals — like customers’ adoption of the new machines.

One of the many customers or clients present at the event summed at sentiments of those who were present and able to see the machines for themselves.

“I really wanted to use Fuxi Xerox Graphic Communications machines. Seeing it personally made me craved for more,” the unnamed customer emphasized.

That sounds like a great beginning for the Japanese company’s products, a by-word among business organizations, big and small.

As well as the machines shown at the Open House, Fujix Xerxo also featured sample prints from Versant 180, Iridesse, and DC5588 that will keep businesses happy for their high volume and high quality printing that are best for graphic arts companies and businesses.

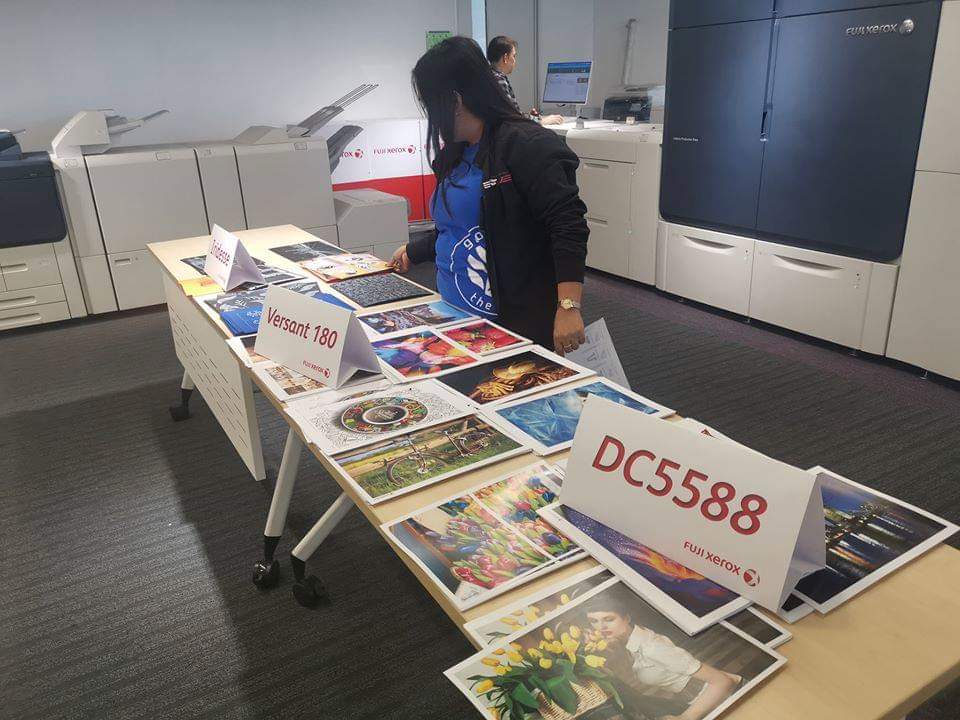

SAMPLE PRINTS. At the left are some of the many sample prints from the Fuji Xerox machines. At the right a company staff demonstrates one of the digital printing machines.

Versant 180’s full specifications:


Rated speed
  • 80 ppm (8.5″ x 11″/A4), 52–350 g/m² with Performance Package
  • 80 ppm (8.5″ x 11″/A4), 52-220 g/m²
  • 60 ppm (8.5″ x 11″/A4), 221-350 g/m²
  • 44 ppm (11″ x 17″/A3), 52–350 g/m² with Performance Package
  • 44 ppm (11″ x 17″/A3), 52-220 g/m²
  • 32 ppm (11″ x 17″/A3), 221-350 g/m²
  • 2400 x 2400 dpi VCSEL ROS for sharpness, detailed shadows, and bright highlights
  • 1200 x 1200 x 10 RIP rendering without down sampling for Ultra HD performance
Recommended average monthly volume 80,000 pages per month
Duty cycle 750,000 pages per month
Line Screens Halftone Screens for smoother, crisper resolution and improved gradients

  • 150, 175, 200, 300, 600 Clustered Dot
  • 150, 200 Rotated Line Screen
  • FM Stochastic Screen


  • Xerox® Versant® 180 Press
  • Xerox® Versant® 180 Press with Performance Package
Standard Capabilities Color printing, copying, and scanning
Optional Capabilities High-capacity feeding, stacking, and finishing
Printed Sides Duplex
Other Scanning Features
  • E-Mail: Scan documents to email addresses as attachments to the emails
  • Network Scanning: Scan documents to the print server for further routing to up to four locations: a mailbox on the server, an email address, a network shared folder, and/or an ftp site
  • Scan to PC: Scan documents to a Windows® PC
  • Store to USB: Scan documents to a flash drive plugged into the USB port
  • Store to Folder: Scan documents to a folder on the press for storage


Color Technology Automated Color Quality Suite

Paper Handling

Paper sources 3 standard trays plus bypass; 3 optional high capacity feeders
Standard paper capacity 1,900 sheets
Maximum paper capacity with options 9,900 sheets
Media Dimensions – Minimum 3.9″ x 5.7″ (98 mm x 146 mm)
Media Dimensions – Maximum 13″ x 26″ (330 x 660 mm)
Media Weight – Minimum 52 gsm
Media Weight – Maximum 350 gsm
Media Types Coated and uncoated papers, bright papers, labels, business cards, glossy brochures, window decals, durable/synthetic papers, greeting cards, tabs, embossed, polyesters and custom solutions
Mixed-stock jobs supported
Auto Duplex High Capacity trays (52 – 300 g/m²)
Standard trays (52 – 256 g/m²)
Manual sheet inserter (52 – 300 g/m²)


Tray 1 550 sheets
Tray 2 550 sheets
Tray 3 550 sheets
Optional High Capacity Feeder
  • High Capacity Feeder: One Tray 2,000 sheets, 8.5″ x 11″/A4, 64 – 220 g/m² – uncoated only
  • Oversized High Capacity Feeder: 2,000 sheet capacity, min size with Tray Inserter 3.9″ x 5.8″ (100 x 148 mm), max size 13″ x 19.2″ (330 x 488 mm); 52 g/m² – 350 g/m² – uncoated and coated
  • Advanced Oversized High Capcity Feeder: 4,000 sheet capacity, min size with Tray Inserter 3.9″ x 5.8″ (98 x 148 mm), max size 13″ x 19.2″ (330 x 488 mm); 52 g/m² – 350 g/m² – uncoated and coated
Standard Duplex Automatic Document Feeder Single-pass Duplex Automatic Document Feeder, up to 200 ipm color / B&W, 250-sheet capacity, up to 11″ x 17″ (A3), 38 g/m² (16 lb. bond) to 200 g/m² (53 lb. bond), copy or scan to a variety of output options
Inserter Manual Sheet Inserter: 250 sheets


Electrical Requirements North America: 208-240 V, 50/60 Hz, 16 amps/requires 20A circuit, NEMA 6-20-R socket
Europe: 220-240 V, 50 Hz, 20 amps/requires 20A circuit, PCE Shark 023-6 mating socket
Additional electrical required for print server and feeding/finishing devices:
  • 115 VAC, 15 Amp for 60 Hz or 220 VAC, 10 Amp for 50 Hz (Western Hemisphere)
  • 220-240 Volts, 10 Amp, 50 Hz (Europe)

Dimensions30″ (W) x 33″ (D) x 48″ (H)
760 mm (W) x 831 mm (D) x 1,212 mm (H)
Weight: 651 lb. (295 kg)

Iridesse — a brief overview:


The cutting edge of digital printing.

Designs featuring specialty colours with the shine of eye-catching gold, silver, and metallic.
Iridesse Production Press — the industry’s first* 6-colour print engine — realises these printing expressions on demand, which were done mainly by offset.

High productivity, outstanding image quality, a wide media latitude, and the reliability of the production flagship model featuring unprecedented power of expression make a solid difference in your business.

* Xerographic process. As of November 2017 (Fuji Xerox Philippines)

Images from Fuji Xerox Philippines.
